» Automatic Round Bottle Label Sticking Machine

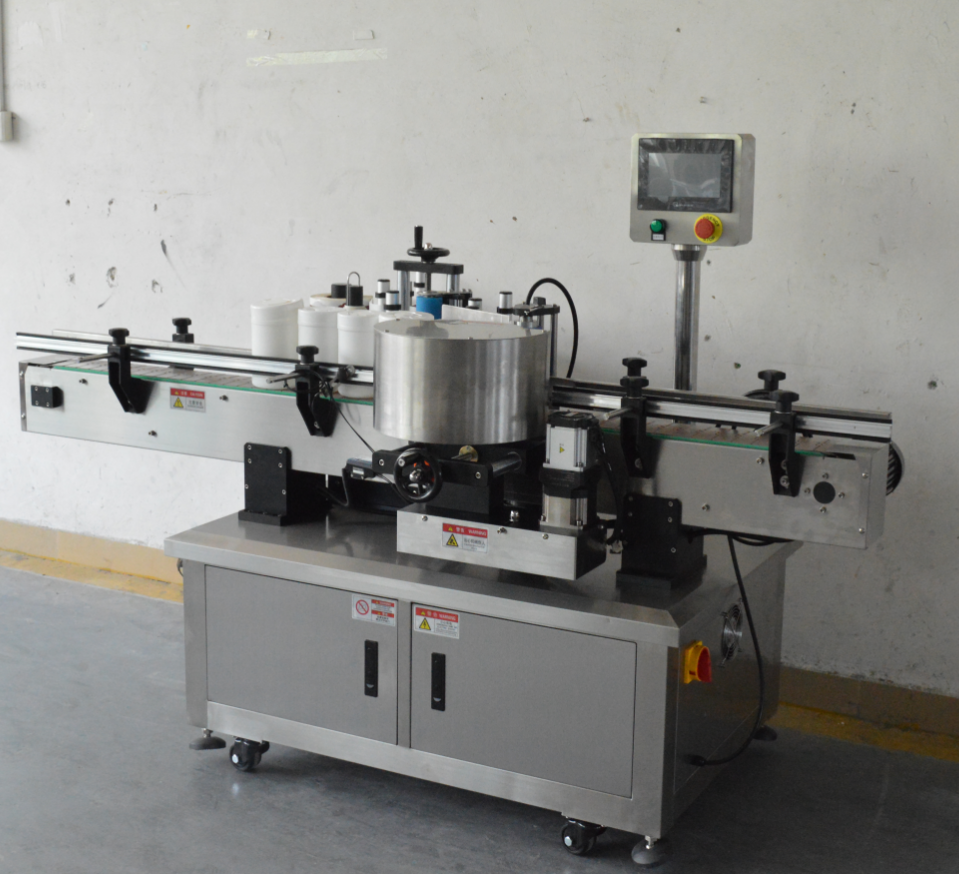

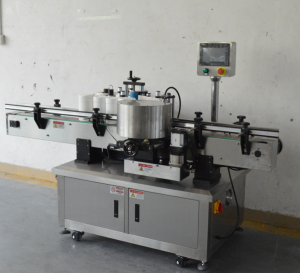

Introduction of automatic round bottle labeling machine:
1. The automatic round bottle labeling machine is a round bottle labeling machine equipment, dedicated to round bottle labeling, single label and double label can be applied, and the distance between front and back double labels can be flexibly adjusted;
2. With the function of labeling conical flask;
3. Optional circumferential positioning detection device can realize labeling at the specified position on the circumferential surface.
4. The equipment can be used as a stand-alone machine, or it can be used with a packaging line or a filling line.
5. It can be equipped with a code printer or a printer to the labeling head, which can print the production date, batch number and bar code printing on the label.
Technical parameters of automatic round bottle labeling machine:
The following are the technical parameters of the standard model, other special requirements and functions can be customized.
| Applicable label length: | 20mm～285mm |
| Applicable label width (bottom paper width): | 20mm～180mm |
| Applicable product diameter: | 25mm～100mm |
| Applicable product height: | 25mm～300mm |
| Applicable label roll outer diameter (mm): | φ280mm |
| Applicable label roll inner diameter (mm): | φ76mm |
| Labeling accuracy (mm): | ±1mm |
| Labeling speed (pcs/min): | 25～50pcs/min |
| Weight (kg): | About190kg |
| Frequency (HZ): | 50HZ |
| Voltage (V): | 220V |
| Power (W): | 700W(Traction step) |
| Equipment dimensions (mm) (length×width×height): | About1950mm×1200mm×1500mm |

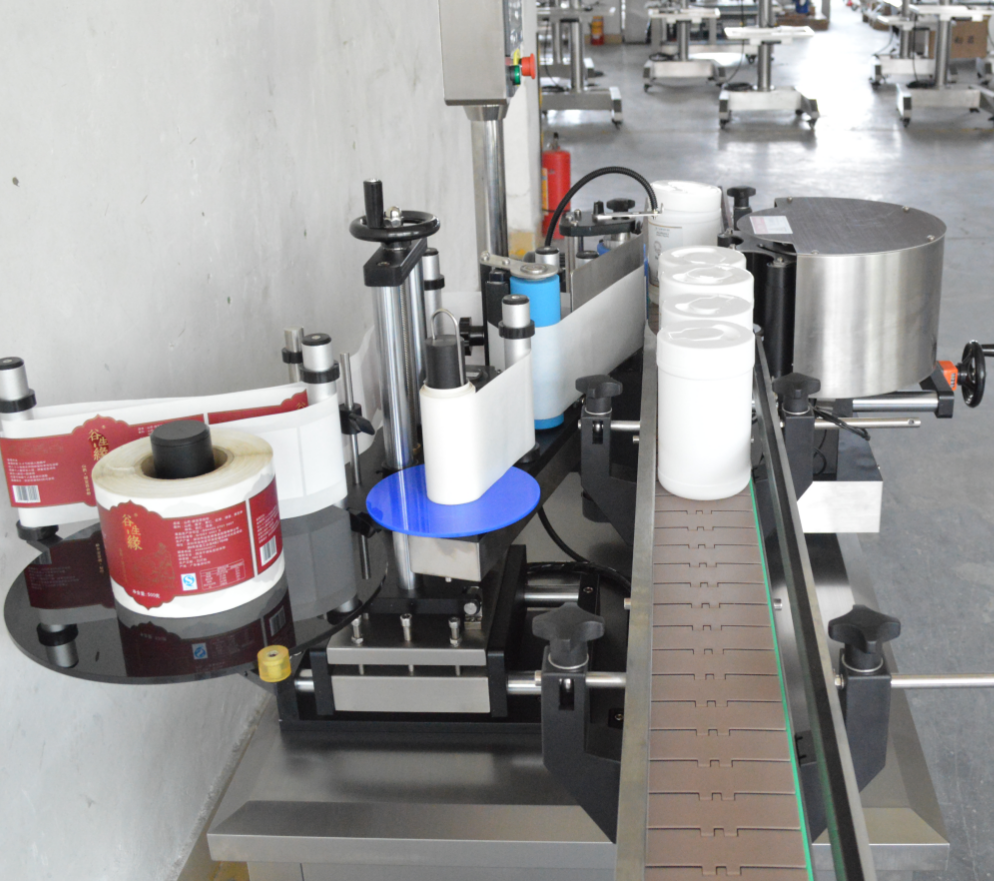

Application Case：
Features of automatic round bottle labeling machine:
- Wide application range: suitable for bottles, jars, six-sided bottles and other cylindrical containers made of plastic, glass and metal.
- Good labeling quality: adopting flexible labeling tape, labeling is smooth and wrinkle-free, which improves the quality of packaging.
- Intelligent control: automatic photoelectric tracking, no labeling, no labeling, no labeling automatic error correction, automatic detection of labeling function.
- High stability: easy adjustment, stepless adjustment of labeling speed, transport speed and bottle discharge speed.
- Sensitive application: vertical bottle labeling, with automatic bottle separation function, can be consumed on an independent machine or connected to a small production line.
- The equipment adopts stainless steel and light aluminum profile, not easy to rust, solid structure, stable operation.
- Support date coding function and leakage labeling, leakage coding detection function.
Application scope of automatic round bottle labeling machine
1. Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.
2. Applicable products: cans, bottles, barrels, cans, etc.
3. Application industry: widely used in catering, chemical, daily chemical, food, tobacco and alcohol, medicine, gifts, handicrafts, hardware and other industries.
Customization is accepted.
