» 300L Beer Brewing Equipment
300L Beer Brewing System (For example)
| Brewing System | Components | Capacity | Specification |
| Grinding System | Malt mill machine | 300~500KG/H | Double Roller, Noise<60db |
| Brewhouse System | Mash/Lauter tun | 300L | Heating source: Steam, Electric, Gas SUS304/Red copper/Rose Golden/Customized Interior: 3.0mm Exterior: 2.0mm |
| Kettle/Whirlpool Tank | 300L | ||
| Hot Water Tank | 600L | ||
| Plate Heat ex-changer | 5 M2 | Stainless steel plate, one-stage/two-stage | |
| Fermentation System | Fermentation Tank | 600L*6 | Top manhole/Side manhole Dimple cooling jacket |
| Yeast Adding Tank | 10L | SUS304 Stainless Steel | |
| Cooling System | Glycol Water tank | 1000L | Stainless steel |
| Refrigeration units | 3HP*2 | Refrigerant R404a, Copeland compressor | |
| Ice Water Pump | 3T/H | Stainless steel | |
| Cleaning System | Disinfection Tank | 50L | SUS304 full welded |
| Alkali Tank | 50L, double layer and with heating elements | ||
| CIP Pump | 3T/H | ||
| Control System | Control Cabinet | PLC touch screen | Semi-automatic |
| Heating System (Choose one) |
Electric heating | 6KW*6 | Stainless steel/Copper electrical heating elements |
| Steam heating | 30KG/H | Electric/Gas/Oil/Biomass boiler |
As our years experience to help our customers to build their dreamed brewery, launch a brewery with a compact system that has the features of a larger brewery--300L~500L should be a perfect choice for your startup business of the craft beer brewery. And as you growing and planning to increase the production to a higher goal, the previous system now becomes to a brew lab for testing new recipes or brewing small batch seasonal specialties.
Basic configuration
300L Brewhouse
The brewhouse combination is optional, we will suggest a proper one based on your brewing process and your space restraints. And the customized service is also acceptable.
Fermentation system
Fermentation tanks 300L or 600L, according to your beer production and requirement on the brewery to set up the fermentation tanks. Generally in double size will be more save space and with high cost performance.
BBT/Uni tank/Lager tank are optional as well.
Control system
Electricity control cabinet with digital display meters or PLC touch screen.
Separate the control of brewhouse system and fermentation system, high up the level of the brewing automated, or make some special design full of your company features etc. We will discuss with you about the function you would like to realize during the brewing process and your personal idea of the brewery to show up your passion, and then we will be aware how to do for you to make it true.

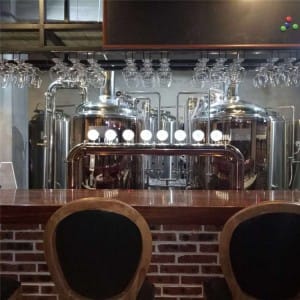

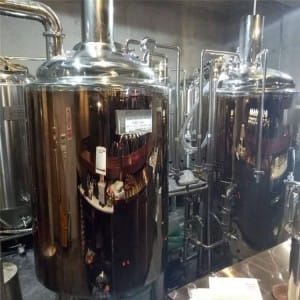

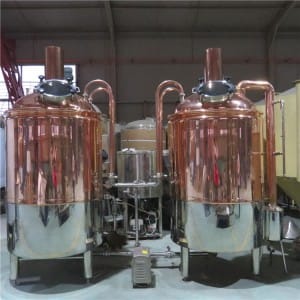

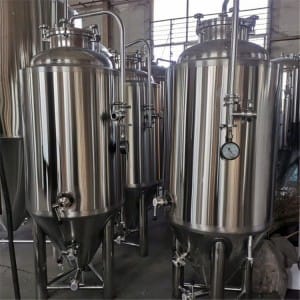

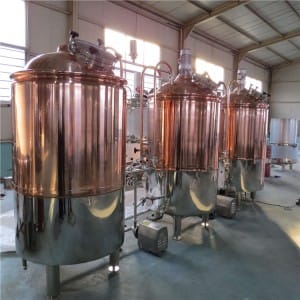

More pictures for reference
